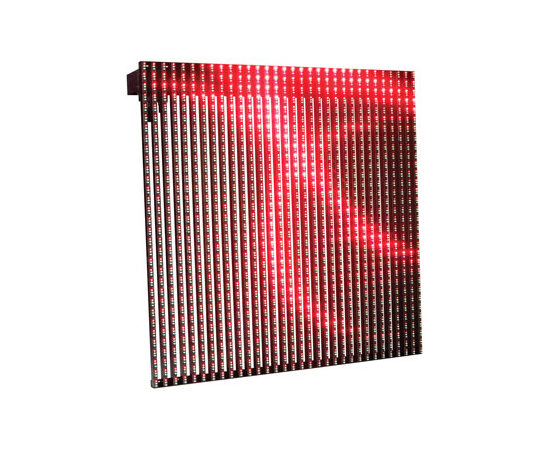

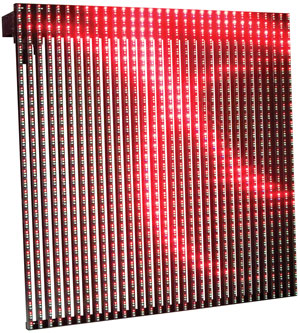

Экран AMERICAN AUDIO EVLED1024 LED Video Screen (11128)
Specifications
- Light Weight Medium Resolution Transparent LED Video Screen
- Transparency: 35%
- Curtain Composition: Al-alloy frame, rubber compound dealing with seams for weatherproof
- Tile Size: 600 X 600 X 75 mm/tile (2 x 2)
- Tile Weight: 7.5 kg/tile
- Tile Area: 0.36m2/tile
- Pixel Pitch : 18.75 mm
- Luminosity: 5500 nits
- Color Temperature: 6500 k
- Visual Angle 110 / 50 (50% brightness)
- Visual Range: 160 / 80
- Pixel Configuration: 1R 1G 1B (DIP)
- Tile Rsolution: 32 x 32 pixels/tile
- Pixel Resolution: 2844 pixels/m2
- LED Quantity: 8532 LEDs/m2
- Color Number: 14 Trillion
- Processing Depth: 14 bits
- Contrast Ration: 1,600:1
- Life Span: 100,000 hours - LED: 50,000-70,000 hour - floor body
- Frame Rate : 60Hz
- Data Refresh Rate: 800Hz
- Display Mode: Synchronous with video source
- LED Failure Rate: 1/10,000
- MTBF: > 10,000 hours
- Drive Mode: Static, Constant Current Drive
- Power Supply: AC 100-240V, 50Hz or 60 Hz
- Working Voltage: DC 5V
- Power Consumption: 560 w/m2(max): 350 w/m2(average)
- Ingress Protection: Front: IP65, Back: IP65
- Ambient Temperature: -20 to +50 Celsius Degree
- Relative Humidity: 10% to 99%
