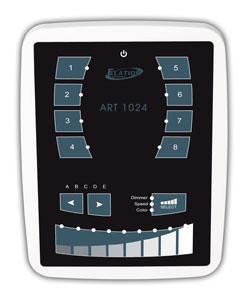

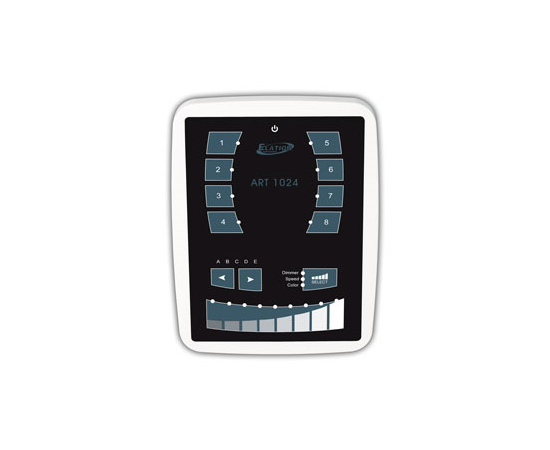

Пульт DMX AMERICAN AUDIO ART-1024 (10415)

User interface 14 buttons, 1 fader, 28 leds - Touch Sensitive Keypad (extension socket rear connectors - 2x20 pins)
 • Programming software included to run on PC
 • SD Card Mini SD (included) card for stand alone memory use (Built-in features) & (front access connections - open cover)
 • RESET Push button for reset operation (front access connections - open cover)
 • RS232 RS232 serial communication for external synchronization (extension socket rear connectors - 2x20 pins)
 • Output relay Automatic stand by 5V signal (extension socket rear connectors - 2x20 pins)
 • Real time clock and calendar, 10 minutes saving without power (Built-in features)
 • IR Receiver* Easy learning triggering from any 36Khz remote control (Built-in features)
 • DMX Output #1 Universe 1, 512 channels DMX512 Output (screw-terminal rear connector - 9 pins)
 • DMX Output #2* Universe 2, 512 channels DMX512 Output (extension socket rear connectors - 2x20 pins)
 • USB USB 2.0 communication for PC/software (extension socket rear connectors - 2x20 pins)
 • Ethernet** Advanced networking features (front access connections - open cov

 Package Content: Interface, SD card, user manual, cdrom, USB cable, power supply (*)
 PC Requirement Computer using Windows XP/VISTA 32 bits and USB 2.0
 PC Software Included: ART 1024
 Options Dedicatted remote control (**), Ethernet extesion (**)
 Safety Standards EC, EMC, ROHS
 Temperature 14°F to 122°F (-10°C to 50°C)
 Dimensions 6.62" x 5.04" x 0.45" Complete package (168 x 128 x 11,5mm)
 Weight 0.44lbs. (0,2kg) Complete package 1.32lbs. (0,6kg)
 • Power Supply 9VDC 0.65A, Supplied (screw-terminal rear connector - 9 pins)
 • Ports 1,2,3,4 4 Contact closure inputs, connect to ground for operating (extension socket rear connectors - 2x20 pins)
 • Ports 5,6,7,8 4 Contact closure inputs, connect to ground for operating (screw-terminal rear connector - 9 pins) & (extension socket rear connectors - 2x20 pins)
 • Microphone** Built-in microphone for sound to light effect (Built-in features)
 • Audio input** Audio input for sound to light effect (extension socket rear connectors - 2x20 pins)

Универсальный пульт DMX, для архитектурного освещения, встраиваемый в стену, 2 DMX-512 выхода, 28 сенсорных кнопок, 1 фейдер, часы/календарь, программирование от PC (RS-232, SD-карта - в комплекте)
