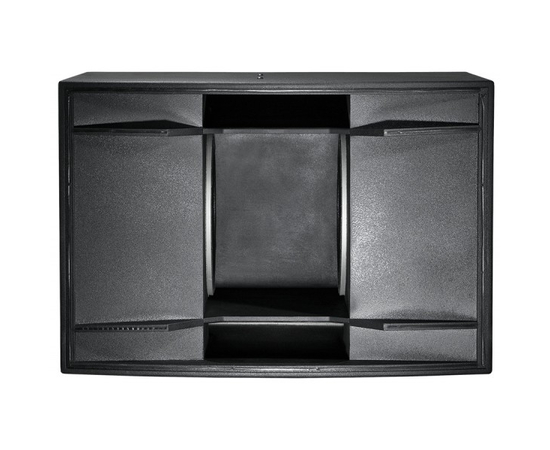

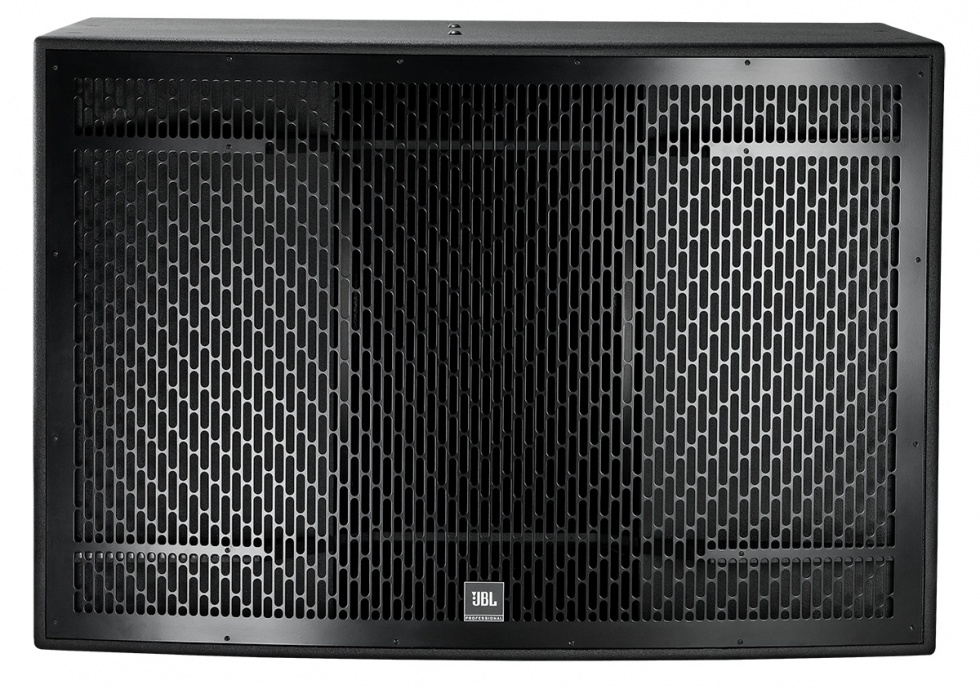

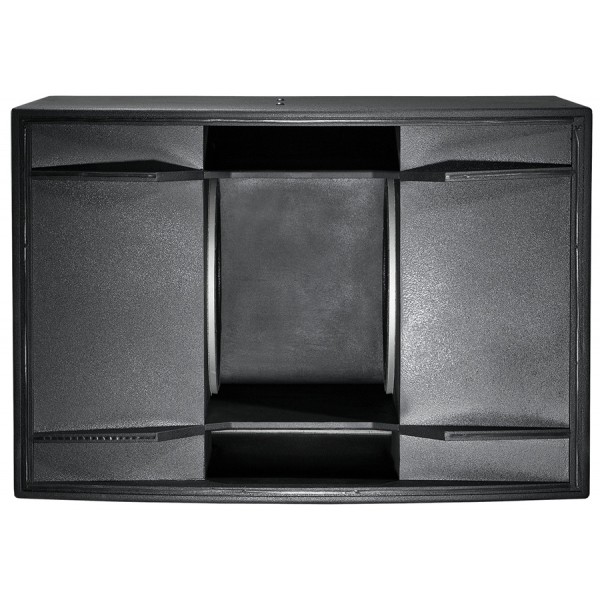

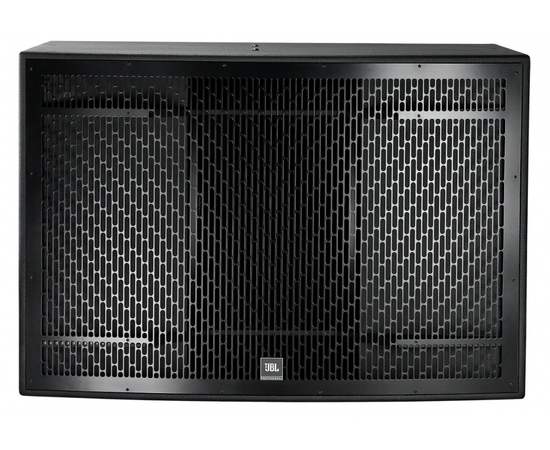

Сабвуфер JBL MD7 (23964)
Характеристики сабвуфера JBL MD7 :
Частотный диапазон (-10 dB) : 20 - 230 Hz
Мощность : 4000 W
Input Modes : Drivers Parallel / Drivers Discrete
Частотная отдача (± 3 dB) : 25 - 180 Hz
Maximum SPL (1m) : 25 Hz - 200 Hz: 134 dB-SPL cont avg. (140 dB peak)
Чувствительность : 25 Hz - 200 Hz: 100 dB-SPL, 1W (2.0V) @ 1m
Номинальный импеданс : 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
НЧ драйвер : 2 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive®, VGC™ drivers
Кабинет : Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-слойная берёзовая фанера
Возможность подвеса : 16 points (4 top, 4 bottom, 4 each side) M10 threaded hardware
Отделка : Black DuraFlex™ finish
Решетка : Powder coated 14 gauge perforated steel
Input
Connector : NL4 Neutrik Speakon® and CE-compliant covered barrier
strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire
or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier
strip for loop-through.
Габариты (H x W x D in vertical cabinet orientation) : 762.0 x 1121.7 x 965.7 mm
Вес : 102.5 kg
Опции : M10 x 35 mm forged shoulder eyebolts with washers
Бренд:
JBL Professional
